Heavy-duty 30 kW three-phase mobile energy storage power station with documented 42 kWh LiFePO4 capacity, 220V/380V outputs, IP54 protection and wheeled mobility.
The AP30 is a heavy-duty mobile energy storage station for emergency rescue, engineering construction, peak-shaving support and industrial project power. It integrates PCS power conversion, seven battery packs, BMS management and fire-protection systems.
| Model | PUR-AP30 |
|---|---|
| Category | Three-Phase (380V) |
| Phase | Three-Phase |
| Voltage Series | 380V |
| Rated Power | 30 kW |
| Energy Capacity | 42 kWh |
| Output Voltage | 380V AC + 220V AC |
| Battery Chemistry | LiFePO4 |
| Depth of Discharge | 95% |
| Ingress Protection | IP54 |
| Cooling | Forced Air |
| Mobility | Heavy-duty casters |
| Heavy Machinery | Heavy Machinery |
| EPC Grade | EPC Grade |
| Peak Power | 33kW |
| Weight | 53kg |
| Battery Type | LiFePO₄ |
| Tags | 380V, B2B, Construction Power, Engineering Energy Storage, LiFePO4, Mobile Power Station, OEM ODM, Three Phase |
The BMS integrates an intelligent 7-layer active protection system designed to withstand the harshest construction environments:
“Minimize site downtime and maintenance costs with our robust BMS—engineered for 24/7 field operations.
Powers drills, saws, site lighting, and comms equipment in urban and remote locations.
Compact size and low maintenance make it a top pick for rental companies serving contractors.
Rapid deployment for disaster relief, campsites, and temporary medical stations.
Provides stable reference power for solar farm commissioning and infrastructure testing.

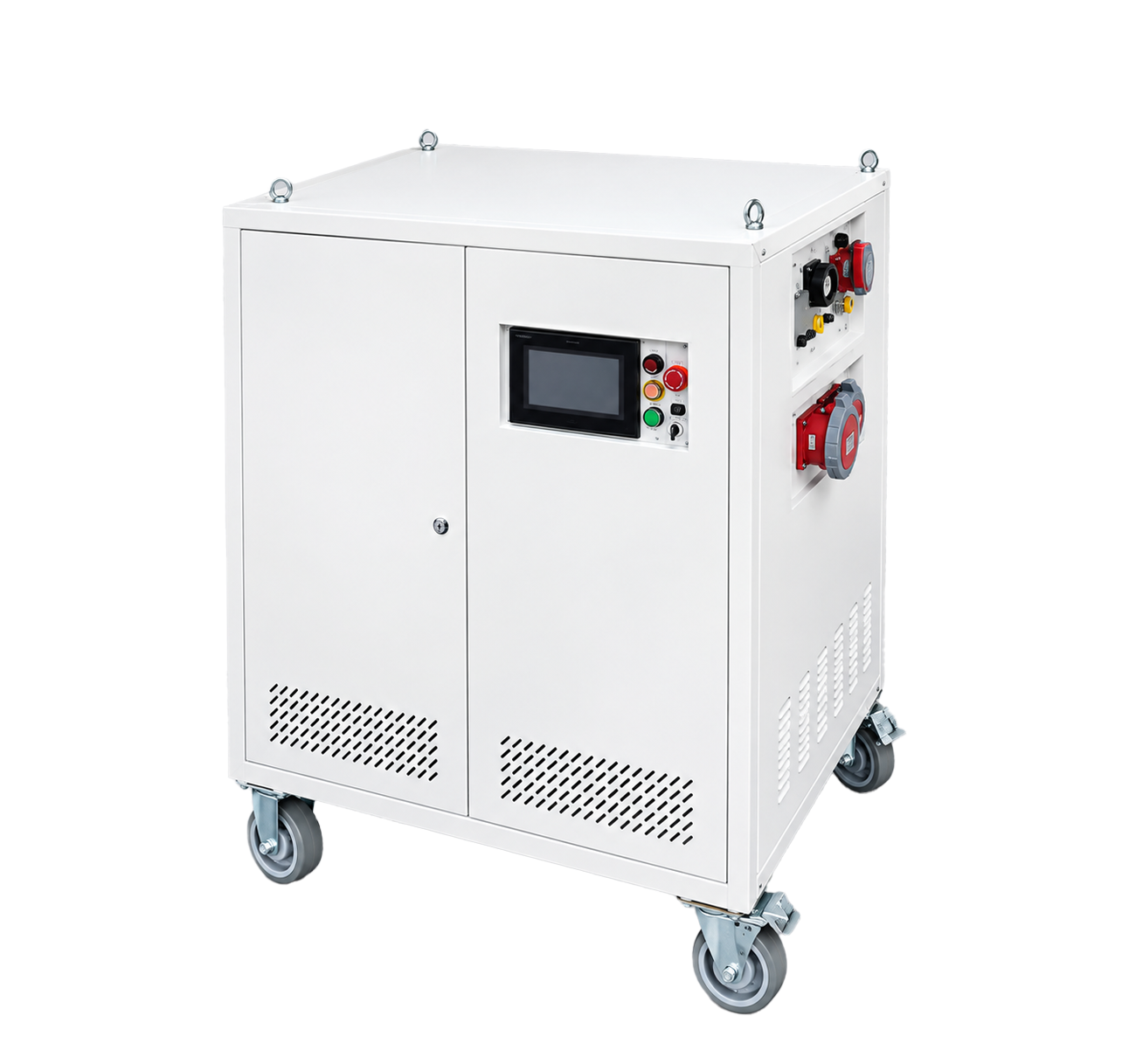

45° View
30kW three‑phase 380V energy storage unit for mid‑scale industrial power needs.
Interface Panel
Reinforced 380V three‑phase panel supporting heavier motor and equipment loads.
Handle & Wheels
Forklift‑compatible base with integrated wheels for factory floor movement.
Worksite Demo
Runs production lines, welding stations, and multi‑machine work areas reliably.
Smart Display
Advanced touch display for phase load, temperature, and battery health tracking.
Compact Size
30kW output delivered from a footprint smaller than comparable industrial units.
We offer full customization services to match your brand identity and project requirements.
Compare single-phase and three-phase models to find the optimal match for your rental, EPC, or wholesale needs.
| PARAMETERS | EP3000 | EP6000 | EP8000 | AP18/16 | AP30/42kWh |
|---|---|---|---|---|---|
| Type | EP3000 Single-Phase | EP6000 Single-Phase | EP8000 Single-Phase | AP18/16 Three-Phase | AP30/42kWh Three-Phase |
| Rated Power |
3,000W Peak 6,000W |
6,000W Peak 10KW |
6,000W Large Capacity |
220V/6kW 380V/18kW |
30,000W Heavy-Duty |
| Voltage | 220V ±5% (Single) | 220V ±5% (Single) | 220V ±5% (Single) | 220V / 380V (Dual) | 380V (Three-Phase) |
| Cell Type | ⚡ LiFePO₄ (Lithium Iron Phosphate) + Industrial BMS | ||||
| Battery Capacity | 2.56 kWh | 5.0 kWh |
10.0 kWh
Long-Endurance | 15.0 kWh | 42.0 kWh |
| Cycle Life | ≥ 3,500 cycles @ 80% DoD | ||||
| Protection | IP54 | IP54 | IP55 | IP55 | IP54 |
| Weight | 31 kg | 62 kg | 63 kg | 145 kg | 53kg |
| Dimensions (L×W×H) | 520×380×290 mm | 620×420×330 mm | 680×460×360 mm | 850×550×420 mm | 1050×850×500 mm |
| Operating Temp. | -20℃ ~ 60℃ | ||||
| Certifications | CE RoHS | ||||
| Optional Cert. | UN38.3 · FCC · UKCA · TUV (Customizable) | ||||
| Best For | Small Tools & Lighting | Rental & Mid-Site | Long-Shift Operations | Mixed Single/3-Phase | Heavy Machinery & EPC |
