High-capacity single-phase mobile engineering power station with 7.168 kWh LiFePO4 storage and 5 kW rated output for longer-duty construction, rescue and industrial applications.
The EP8000 is the high-capacity model in the EP single-phase mobile engineering power family. It is designed for construction, road repair, medical support, emergency rescue, equipment rental and other applications requiring extended mobile runtime.
Construction, road maintenance, medical support, emergency rescue, equipment rental, outdoor engineering and temporary industrial power.
| Model | EP8000 |
|---|---|
| Category | Single-Phase (110/220V) |
| Phase | Single-Phase |
| Voltage Series | 110/220V |
| Rated Power | 5 kW |
| Energy Capacity | 7.168 kWh |
| Output Voltage | 230V AC |
| Output Frequency | 50 Hz |
| Battery Chemistry | LiFePO4 |
| Conversion Efficiency | 90% |
| Weight | 63 kg |
| Dimensions | 500 × 270 × 560 mm |
| Full-Day | Full-Day |
| Long Shift | Long Shift |
| Peak Power | 10kW |
| Battery Type | LiFePO₄ |
| Tags | 220V, B2B, Construction Power, Engineering Energy Storage, EP Series, LiFePO4, Mobile Power Station, OEM ODM, Single Phase |
The BMS integrates an intelligent 7-layer active protection system designed to withstand the harshest construction environments:
“Minimize site downtime and maintenance costs with our robust BMS—engineered for 24/7 field operations.
Powers drills, saws, site lighting, and comms equipment in urban and remote locations.
Compact size and low maintenance make it a top pick for rental companies serving contractors.
Rapid deployment for disaster relief, campsites, and temporary medical stations.
Provides stable reference power for solar farm commissioning and infrastructure testing.

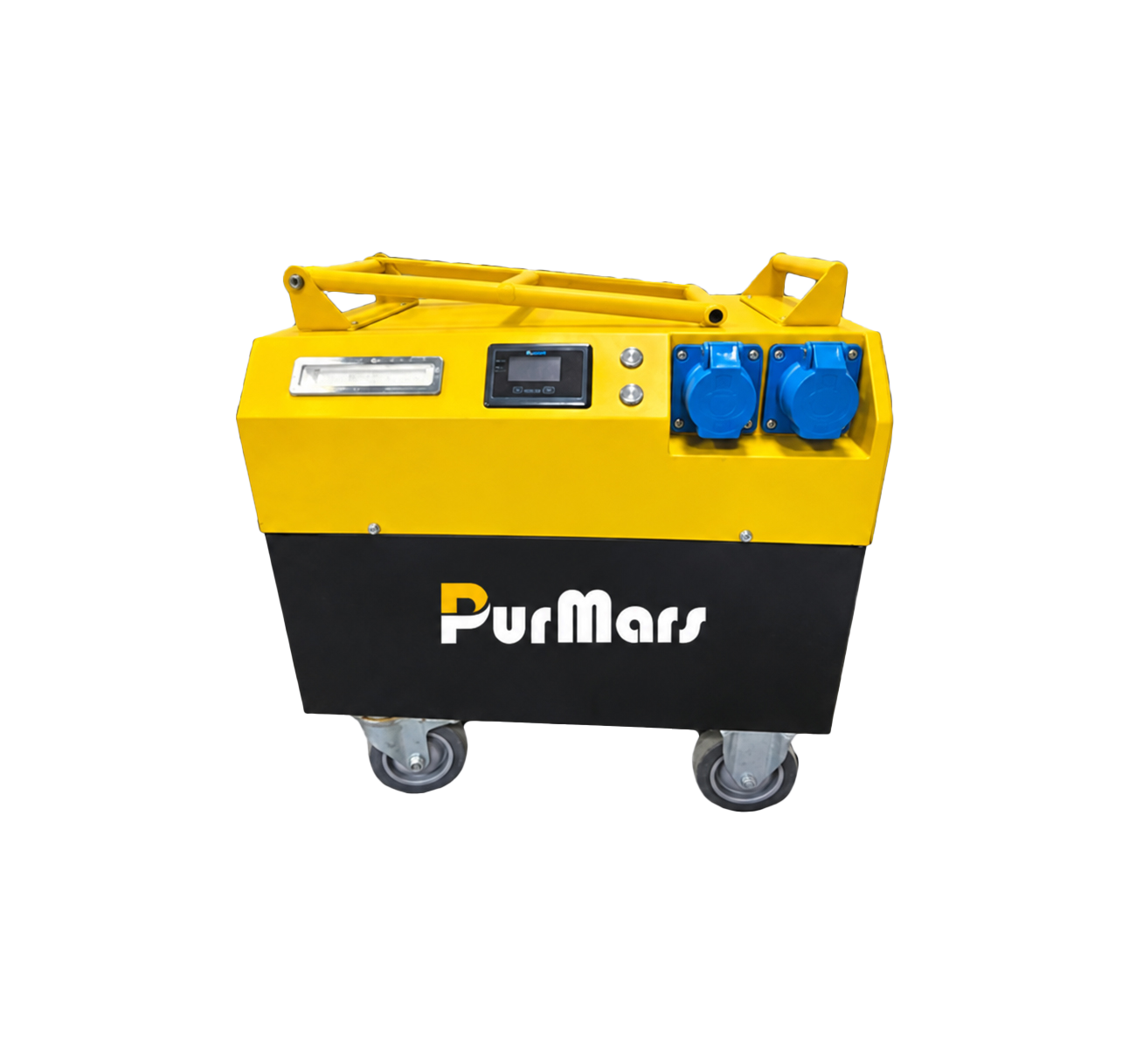

45° View
High‑capacity 8kW single‑phase station for the largest single‑phase job needs.
Interface Panel
Industrial‑grade 110/220V panel supporting multiple simultaneous heavy loads.
Handle & Wheels
Heavy‑duty chassis wheels and locking handle for stable, safe transport.
Worksite Demo
Powers concurrent tools, compressors, and lighting on demanding worksites.
Smart Display
Full diagnostic display tracking capacity, load balance, and runtime estimate.
Compact Size
Maximum 8kW output packed into the smallest footprint in its class.
We offer full customization services to match your brand identity and project requirements.
Compare single-phase and three-phase models to find the optimal match for your rental, EPC, or wholesale needs.
| PARAMETERS | EP3000 | EP6000 | EP8000 | AP18/16 | AP30/42kWh |
|---|---|---|---|---|---|
| Type | EP3000 Single-Phase | EP6000 Single-Phase | EP8000 Single-Phase | AP18/16 Three-Phase | AP30/42kWh Three-Phase |
| Rated Power |
3,000W Peak 6,000W |
6,000W Peak 10KW |
6,000W Large Capacity |
220V/6kW 380V/18kW |
30,000W Heavy-Duty |
| Voltage | 220V ±5% (Single) | 220V ±5% (Single) | 220V ±5% (Single) | 220V / 380V (Dual) | 380V (Three-Phase) |
| Cell Type | ⚡ LiFePO₄ (Lithium Iron Phosphate) + Industrial BMS | ||||
| Battery Capacity | 2.56 kWh | 5.0 kWh |
10.0 kWh
Long-Endurance | 15.0 kWh | 42.0 kWh |
| Cycle Life | ≥ 3,500 cycles @ 80% DoD | ||||
| Protection | IP54 | IP54 | IP55 | IP55 | IP54 |
| Weight | 31 kg | 62 kg | 63 kg | 145 kg | 53kg |
| Dimensions (L×W×H) | 520×380×290 mm | 620×420×330 mm | 680×460×360 mm | 850×550×420 mm | 1050×850×500 mm |
| Operating Temp. | -20℃ ~ 60℃ | ||||
| Certifications | CE RoHS | ||||
| Optional Cert. | UN38.3 · FCC · UKCA · TUV (Customizable) | ||||
| Best For | Small Tools & Lighting | Rental & Mid-Site | Long-Shift Operations | Mixed Single/3-Phase | Heavy Machinery & EPC |
